Détails de produit
Lieu d'origine: CHINE
Nom de marque: Dingang
Certification: SGS , BV , ITS
Numéro de modèle: Dingang - PPAL
Conditions de paiement et d'expédition
Quantité de commande min: 5 tonnes métriques
Prix: Négociable
Détails d'emballage: Emballage maritime standard à l'exportation avec palettes en bois horizontales ou verticales (selon
Délai de livraison: 15 à 35 jours
Conditions de paiement: L / C, D / A, D / P, T / T, Western Union, Moneygram
Capacité d'approvisionnement: 300 000 tonnes par an
Nom de produit: |
Modèle de rides Fuise d'aluminium pré-revêtu de bobine d'aluminium pré-en-revue d'épaiss |
Alliage: |
AA3105,5052 et autres |
Caractère: |
H16, H18, H24 |
Application: |
Construction, toiture, décoration, bâtiment, etc. |
Échantillon: |
Avaliable |
Taper: |
Plaque/bobine en aluminium revêtue d'un motif |
Nom de produit: |
Modèle de rides Fuise d'aluminium pré-revêtu de bobine d'aluminium pré-en-revue d'épaiss |
Alliage: |
AA3105,5052 et autres |
Caractère: |
H16, H18, H24 |
Application: |
Construction, toiture, décoration, bâtiment, etc. |
Échantillon: |
Avaliable |
Taper: |
Plaque/bobine en aluminium revêtue d'un motif |

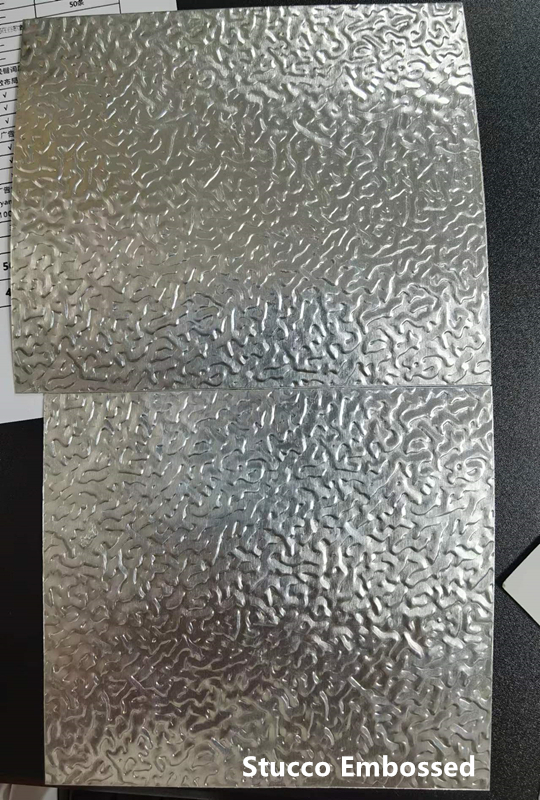

Wrinkle Pattern Pre Coated Aluminium Sheet Prepainted Aluminum Coil 0.50mm Thickness
Pattern Designed Pre-painted Aluminum:
Dingang has developed brick,wood,stone,camouflage and special patterns of pre-painted aluminum decorative plate.It has the characteristics of vivid texture,easy-shaping,anticorrosion,energy conservation&environmental protection,easy installation and safety.It is excellent replacement of traditional stone and glass as decorative materials.
Specifications :
Alloy : AA1060,3003,3005,3105,5052 and etc
Temper : H16/ H24 ( All According Customers' Requirement )
Standard : ASTM,JIS,DIN,EN,ISO,GB And Etc
Thickness : 0.20 mm - 3.00mm
Width : 30 - 2650 mm
Thickness Paint Layer : ( PVDF ) more than 25 micron ; ( PE ) more than 18 micron
Interior Diameter : 405 mm,505 mm,150 mm etc
Color : Ral Color Code Or As Per Clients Requirements And Sample
Design Pattern: Wood,Marble,Stone Wrinkle and so on
Surface: Wrinkle,Hairline and diamond-type
Coating Hardness : More Than 2H ( pencil hardness )
Impact Resistance : No Cracking And Peeling ( 50kg / cm , ASTMD - 2794 : 1993 )
Flexibility ( T-bend ) : No More Than 2T
MEK Resistance : More Than 100
Paint Performance of prepainted aluminium:
| Test Item | Paint | ||||
| PVDF | PE And Others | ||||
| With Varnish | Without Varnish | ||||
| Paint Film Thickness , μ | ≥ 22 | ≥ 30 | ≥ 18 | ||
| Shine Tolerance | Shine ≥ 80 Unit , ± 10 Unit Allowed | ||||
| Shine ≥ 20-80 Unit , ± 7 Unit Allowed | |||||
| Shine < 20 Unit , ± 5 Unit Allowed | |||||
| Pencil Hardness | ≥ 1H | ||||
| Abrasion Resistance, L/μm | ≥ 5 | -- | |||
| T-bend | ≤ 2T | ≤ 3T | |||
| Impact Strength | 50KG . CM Without Depainting And Crack | ||||
| Adhesive Force ( Class ) | ≥ 1 | ||||
| Boiling Water Resistance | Unvarying | ||||
| Chemical Resistance | Acid Endurance | Unvarying | |||
| Alkali Stability | Unvarying | ||||
| Oil Resistivity | Unvarying | ||||
| Resistance To Solvent | ≥ 70 | ≥ 50 | |||
| Scrub Resistance | ≥ 10000 Times Unvarying | ||||
| Dirt Resistance | ≤ 15 % | -- | |||
| Salt Spray Resistance ( class ) | ≥ 2 class | -- | |||
3D Effect Grain Aluminum:
3D effect pre-painted metal material has the appearance of wood,hand feeling of the concave-convex formed by time and various textures.It has the advantages of thermal insulation,heat preservation,good leakproofness.Meanwhile,it has the characteristics of stable performance&anti-corrosion.
Advantages & Characteristics:
*Much higher adhesion between coating & substrates.
*PE & PVDF paint,high durability & wide application.
*Compared with stone material,could be punched or bent to an shape.
*Distinct & vivid texture.
Coating Production Line:
Packing :
Export Standard Seaworthy Packing With Wooden Pallets In Horizontal Or Vertical (As Per The Requirements Of Clients)
Pre-painted Aluminum Application:
Metal Roofing Building & Roller Shutter Door & Building Wall Decoration
Roofing,Cladding,Shutter Door,Ceiling,Household Appliances,Container,Advertaisement and etc.
